Product Overview

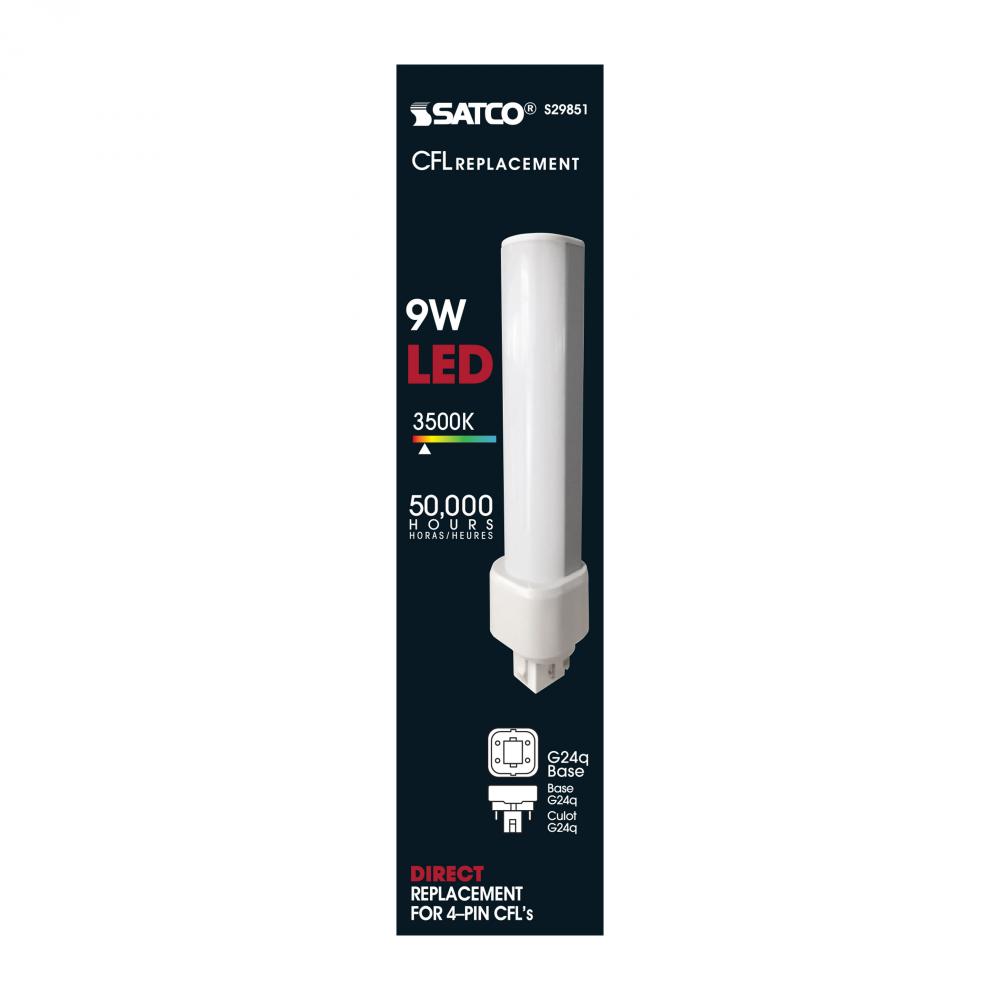

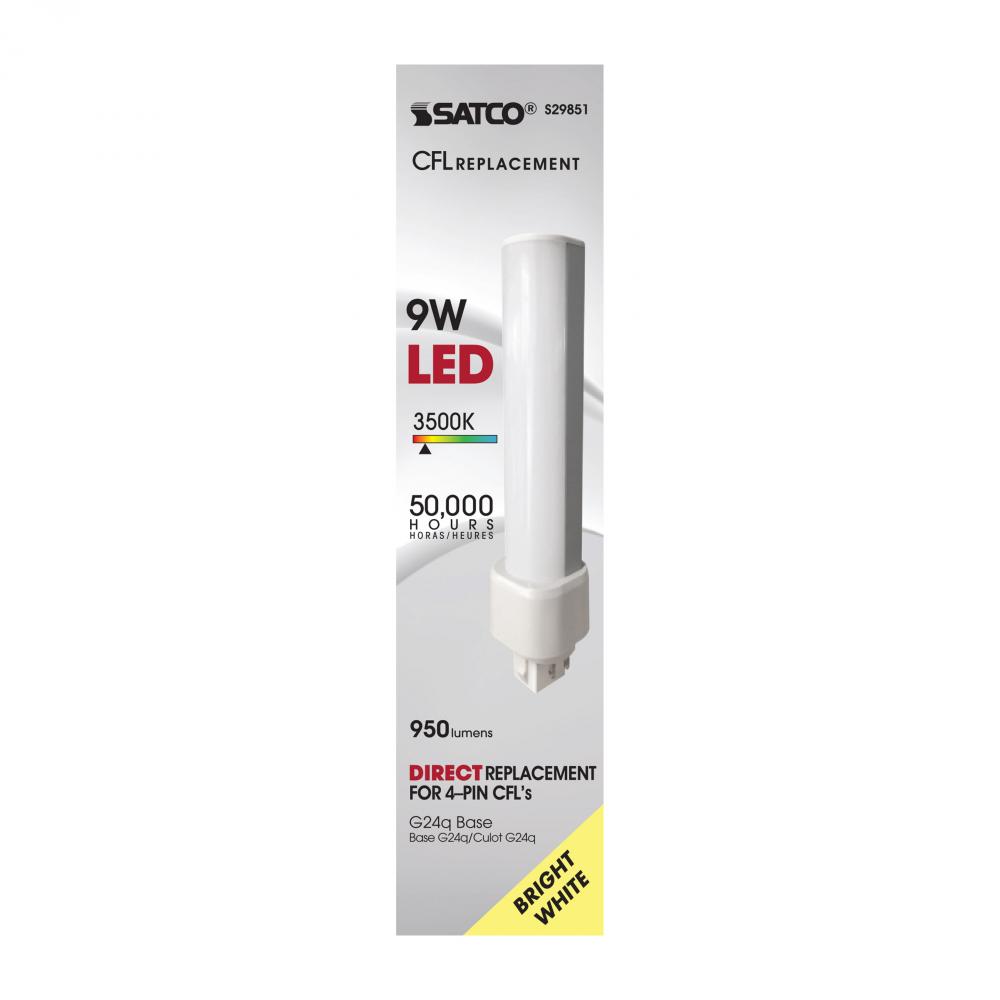

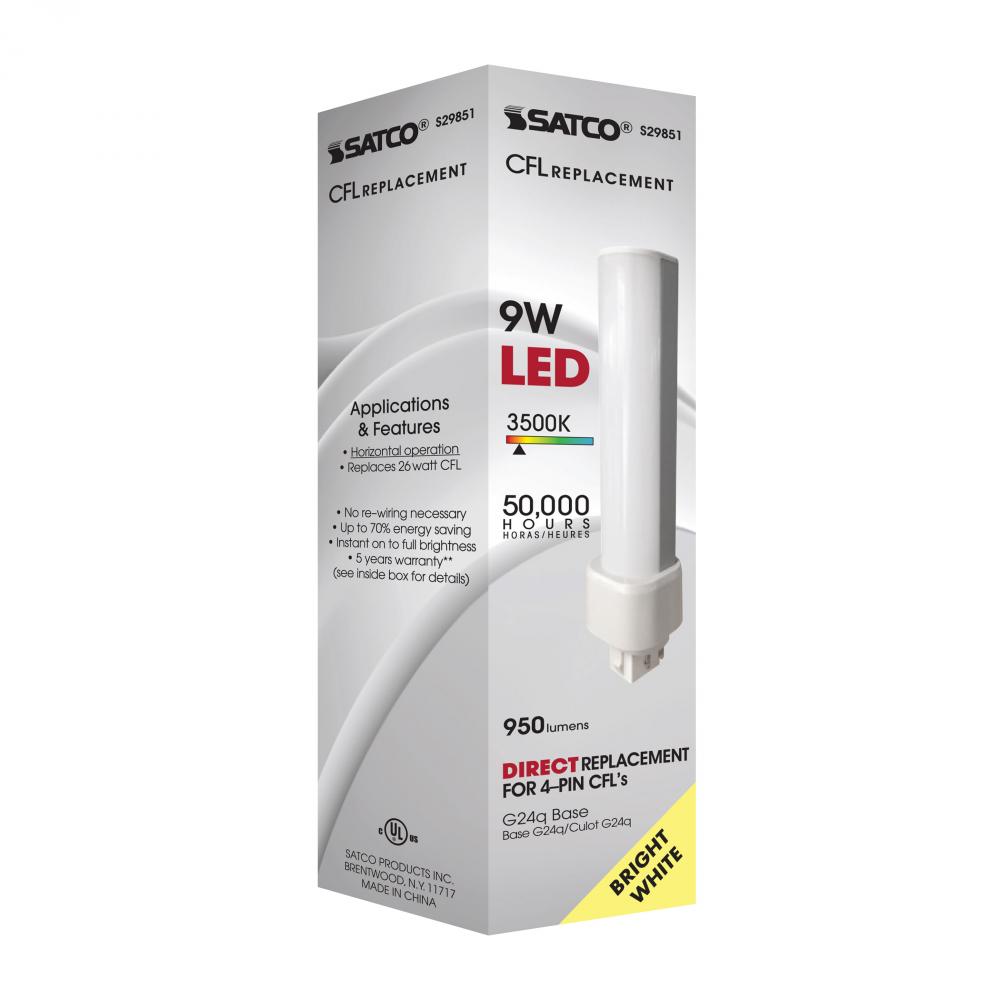

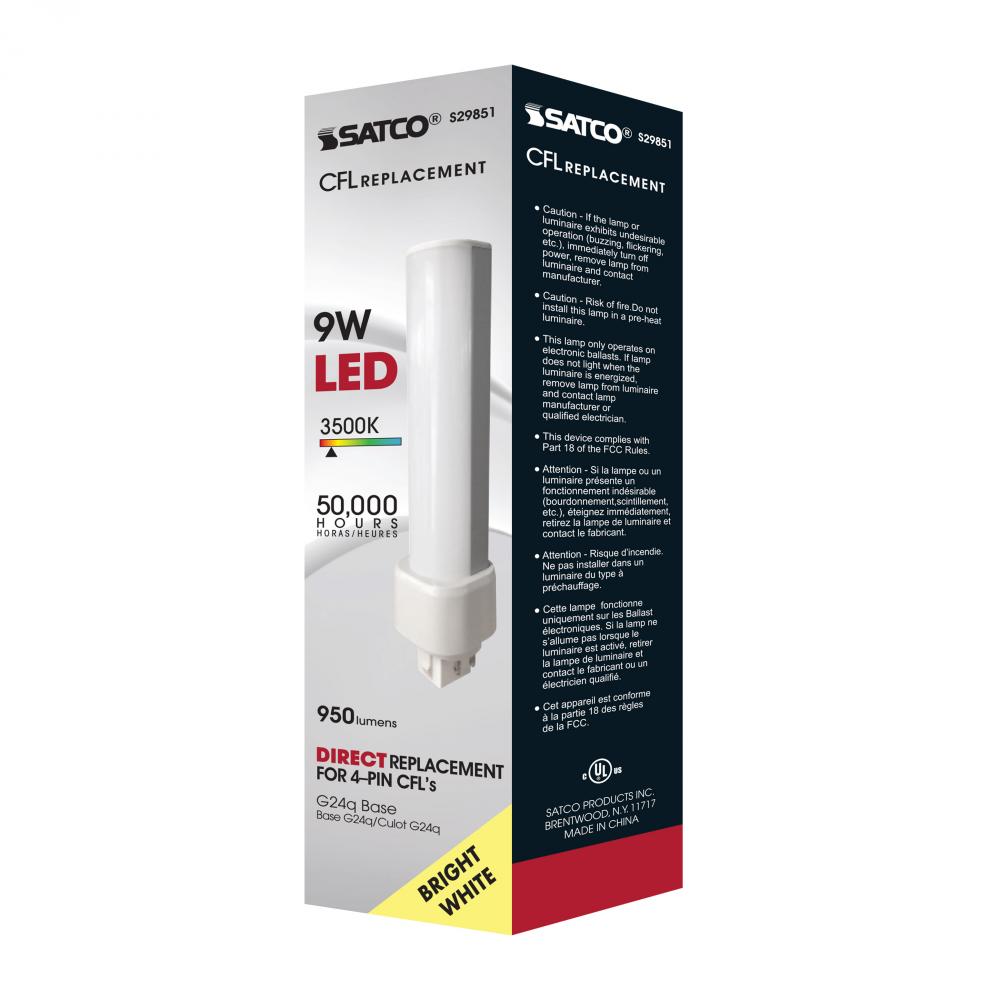

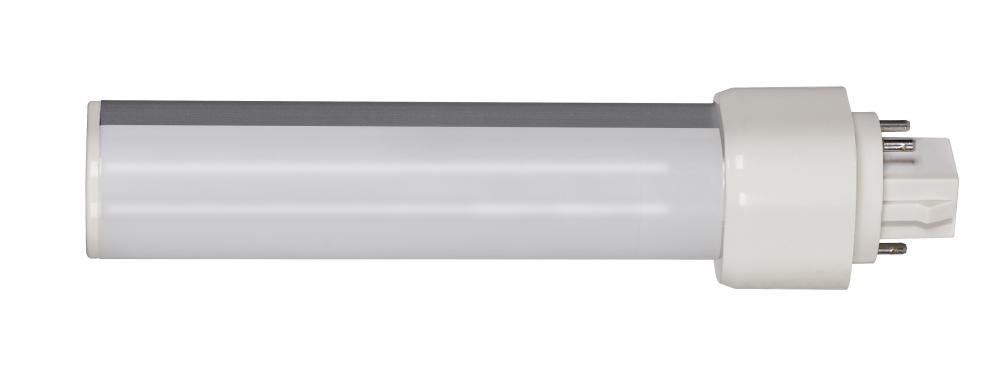

9 Watt LED PL 4-Pin; 3500K; 1050 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

801-1100

Kelvin:

3501-4000

Refinement Options

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

Ballast Dependent

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3500K

Bulb Shape:

PL

Diameter:

1.09

EA Length:

1.5

Harmonized Codes:

8539.52.0091

Length:

6.63

Lumens:

1050L

Shap Carton Width:

1.5

Ship Carton Height:

6.8

Ship Weight:

0.22

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.18

AC/DC:

Ballast dependent

BAA Compliant:

No

Ballast Bypass Direct:

Direct

Ballasting Requirements:

Ballast required

Beam Spread:

120

Bulb ANSI Base:

G24q

Bulb Base:

G24q (4-Pin)

Bulb Finish:

Frost

Burning Position:

Horizontal

Carton Cubic Feet:

0.0089

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Neutral White

Country Of Origin:

China

CRI:

80+

Dimmable Function:

Only Dimmable with Compatible Dimming Ballasts

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PZGSP7ZP

DLC Primary Use:

Replacement Lamps (Plug and Play) (UL Type A)

Efficacy:

116.67 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

26W/32W/42W

Housing Color:

White

Incandescent Equivalent:

40W

Lamp Ballast Type A/B/C:

Type A

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Location Rating:

Damp

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

4

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

9WPLH/LED/835/DR/4P

Style:

Transitional

Technology:

LED

Title 20 Compliant:

Exempt

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

9W
