Product Overview

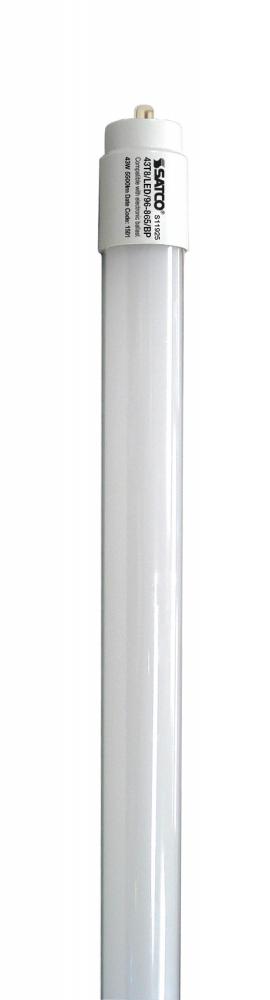

43 Watt T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

6500K

Bulb Shape:

T8

Diameter:

1

EA Length:

96

Harmonized Codes:

8539.52.0051

Length:

96

Lumens:

5500L

Shap Carton Width:

1

Ship Carton Height:

1

Ship Weight:

0.97

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

210

Bulb ANSI Base:

Fa8

Bulb Base:

Single Pin

Bulb Finish:

Gloss White

Burning Position:

Universal

Carton Cubic Feet:

0.0556

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Daylight

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

127.91 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Daylight

Feature 2:

Damp rated for indoor use

Feature 3:

Enclosed Rated Lamp

Feature 4:

L:96.00 D:1.00

Feature 5:

T8, Gloss White Finish

Flourescent Equivalent:

54W/59W

Incandescent Equivalent:

125W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Gloss White

Lens Material:

Glass

Location Rating:

Damp

Long Description:

Satco's S11925 43-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. This gloss white bulb is versatile

Material:

Glass

Minimum Compartment Size:

Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.

Nominal Length:

96

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

10

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 43-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. This gloss white bulb is versatile and de

SDS class:

LED_Lamp

Shatter Proof Text:

Shatterproof coated

Short Description:

43T8/LED/96-865/BP 120-277V

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

43W
