Product Overview

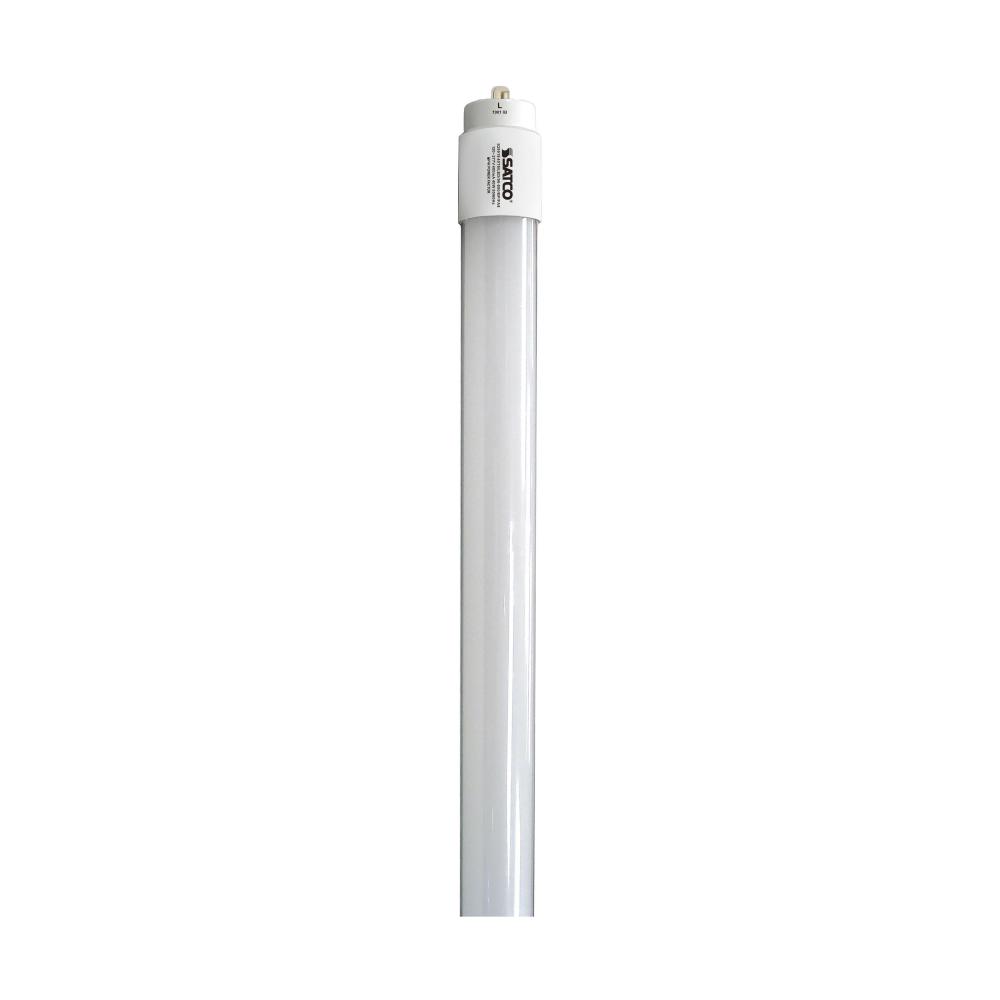

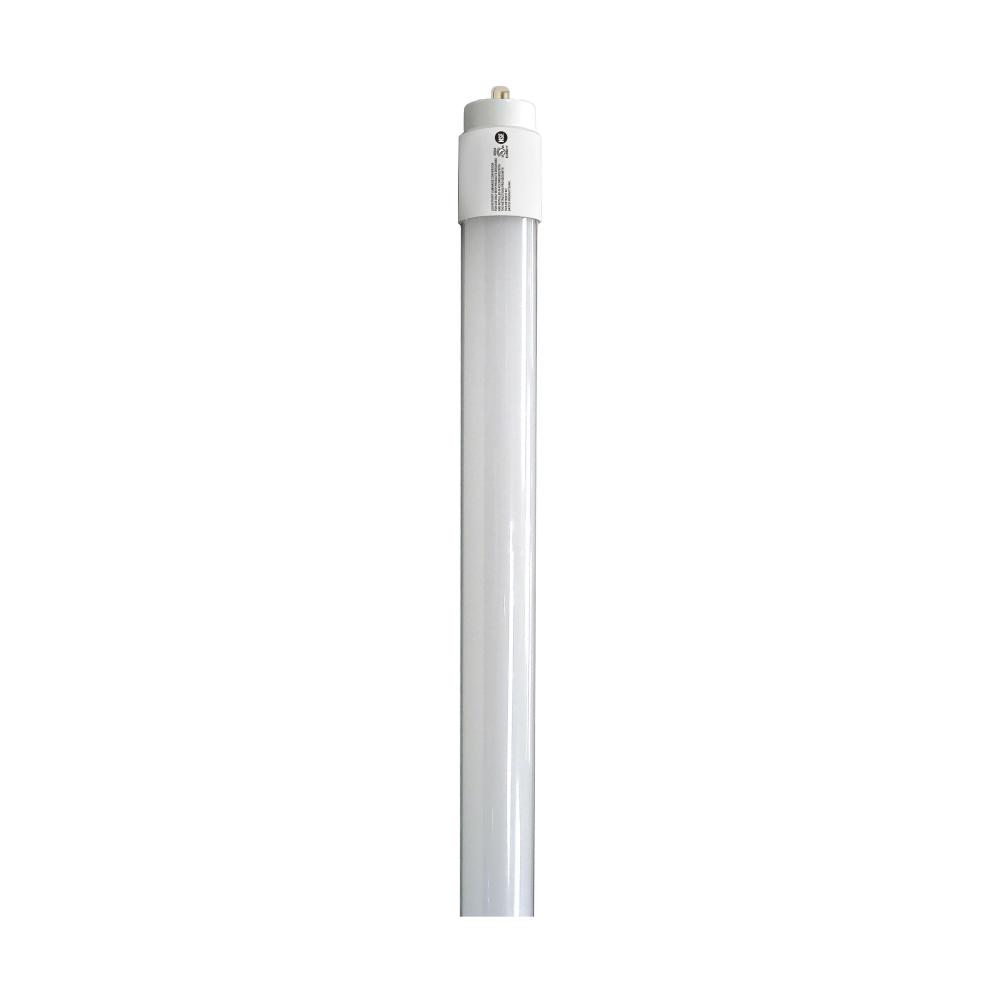

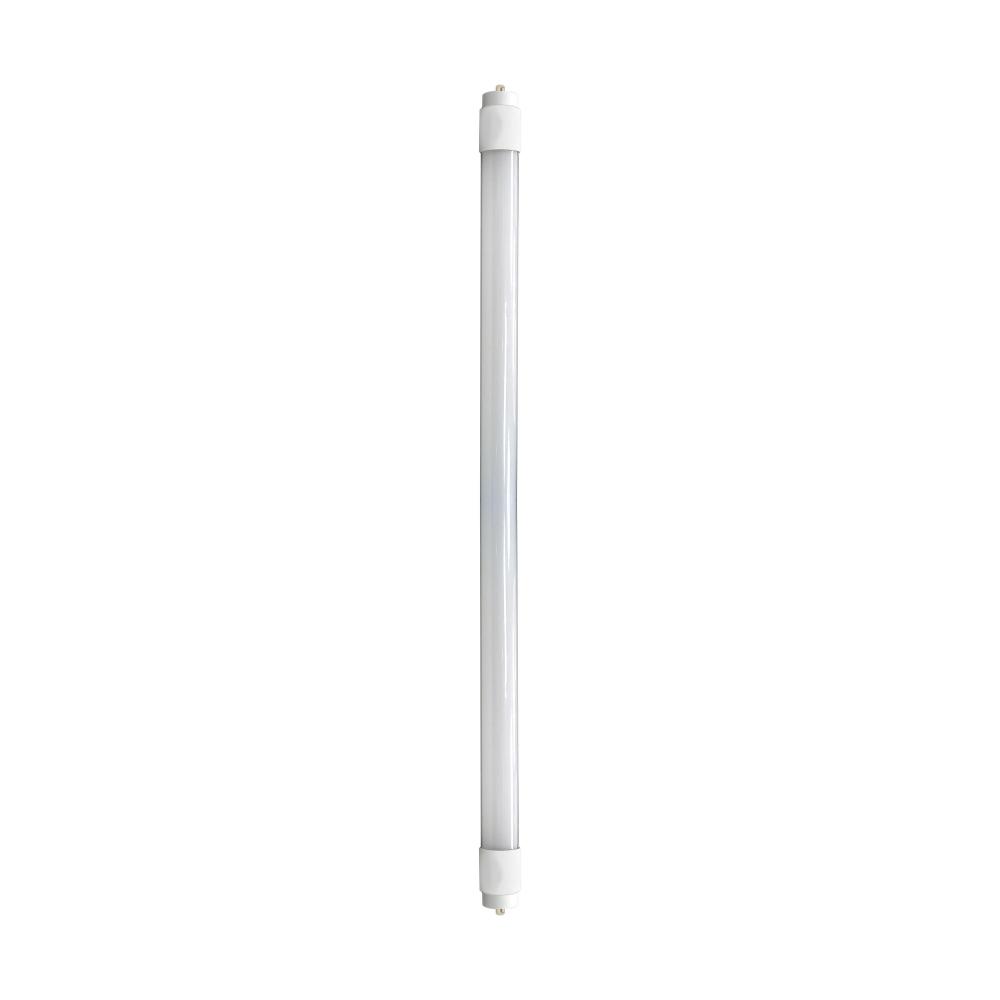

40 Watt; 8 Foot; T8 LED; Single pin base; 5000K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

3300+

Kelvin:

4501-5000

Wattage:

40w

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

T8

Diameter:

1

EA Length:

1

Harmonized Codes:

8539.52.0051

Length:

94

Lumens:

5500L

Shap Carton Width:

1

Ship Carton Height:

96.13

Ship Weight:

0.88

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.88

Additional Info:

Suitable for Emergency Lighting only with Satco EM Driver #S8002

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

210

Bulb ANSI Base:

Fa8

Bulb Base:

Single Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0556

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PLZR8CUD8VL7

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

137.50 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

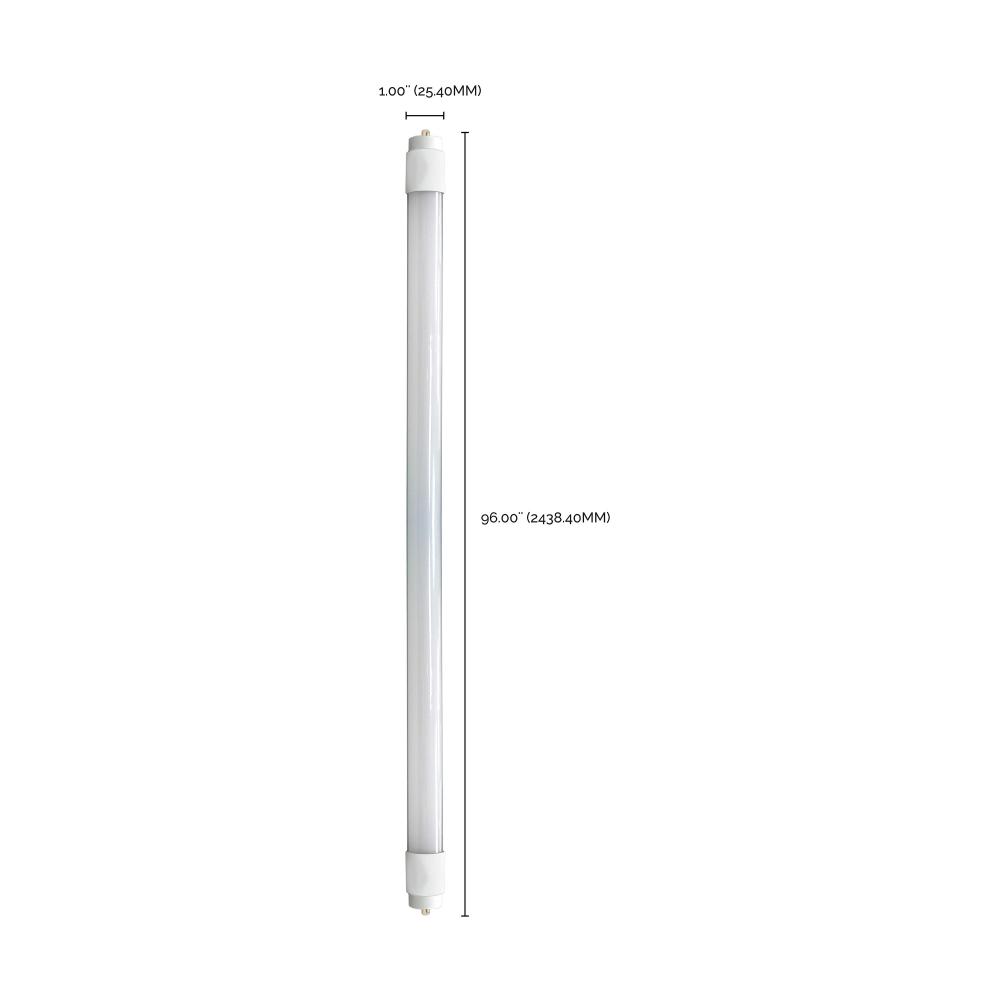

MOL: 94.00 inches, MOD: 1.00 inch

Feature 2:

Superior 82 CRI light quality, 5500 lumens and a 5000K with a 210 beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp rated, for use indoor use only

Feature 5:

40 watt LED replaces 59 watt fluorescent

Feature 6:

White finished linear glass bulb

Feature 7:

DLC Certified and qualifies for rebates where available

Feature 8:

5 year limited warranty

Flourescent Equivalent:

59W

Housing Color:

White

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens Finish:

White

Location Rating:

Damp

Long Description:

SATCO NUVO's S29919 40 watt T8 LED 8 foot Linear Type B ballast bypass commercial linear replacement lamp offers long LED life, packs 5500 powerful lumens of bright, superior quality light, and is DLC certified energy efficient. Double ended wiring for

Material:

Glass

Minimum Compartment Size:

Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.

Nominal Length:

96

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

10

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

12

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 40 watt T8 LED 8 foot Linear Type B ballast bypass commercial linear replacement lamp offers long LED life, packs 5500 powerful lumens of bright, superior quality light, and is DLC certified energy efficient. Double ended wiring for conven

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

40T8/LED/96-850/BP/FA8

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

40W
