Product Overview

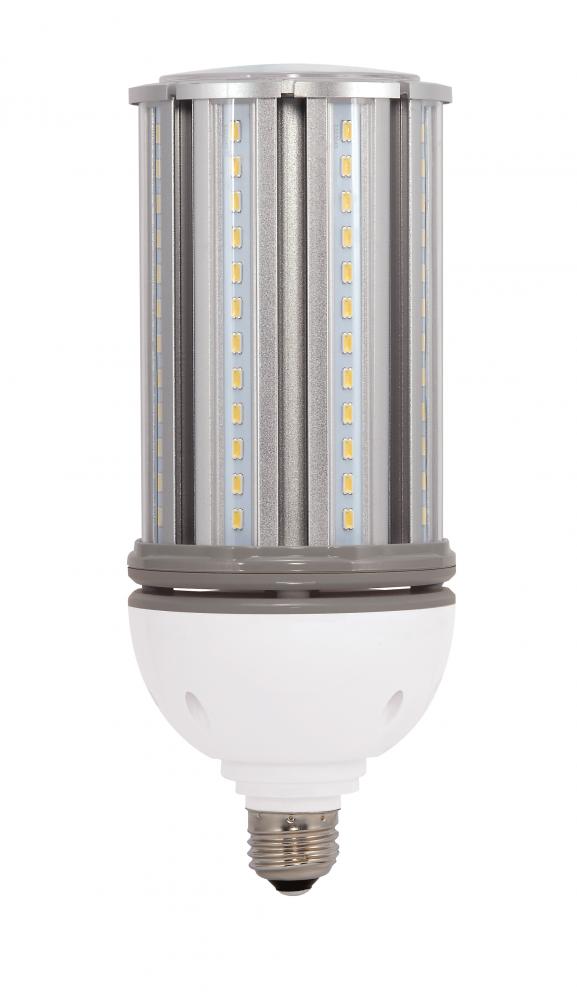

36 Watt LED HID Replacement; 5000K; Medium base; 277-347 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

3300+

Kelvin:

4501-5000

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

277V-347V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

Corncob

Diameter:

3.66

EA Length:

4.96

Harmonized Codes:

8539.52.0091

Length:

9.17

Lumens:

4800L

Shap Carton Width:

4.96

Ship Carton Height:

10.43

Ship Weight:

2.3

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.68

AC/DC:

AC 250-380V

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass-Direct wire only 277-347V

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.1485

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

133.33 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

55W

HID Equivalent:

150W

Housing Color:

White/Grey

Incandescent Equivalent:

200W

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Material:

Aluminum / Plastic

Minimum Compartment Size:

Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in.

Operating Frequency:

50-60Hz

Operating Temp:

-20C (-4F) to +65C (+149F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.88

Quantity In Pack:

1

R9 Value:

13

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

36W/LED/HID/5000K/277-347V/E26

Style:

Contemporary

Technology:

LED

Thermal Management:

Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

36W
