Product Overview

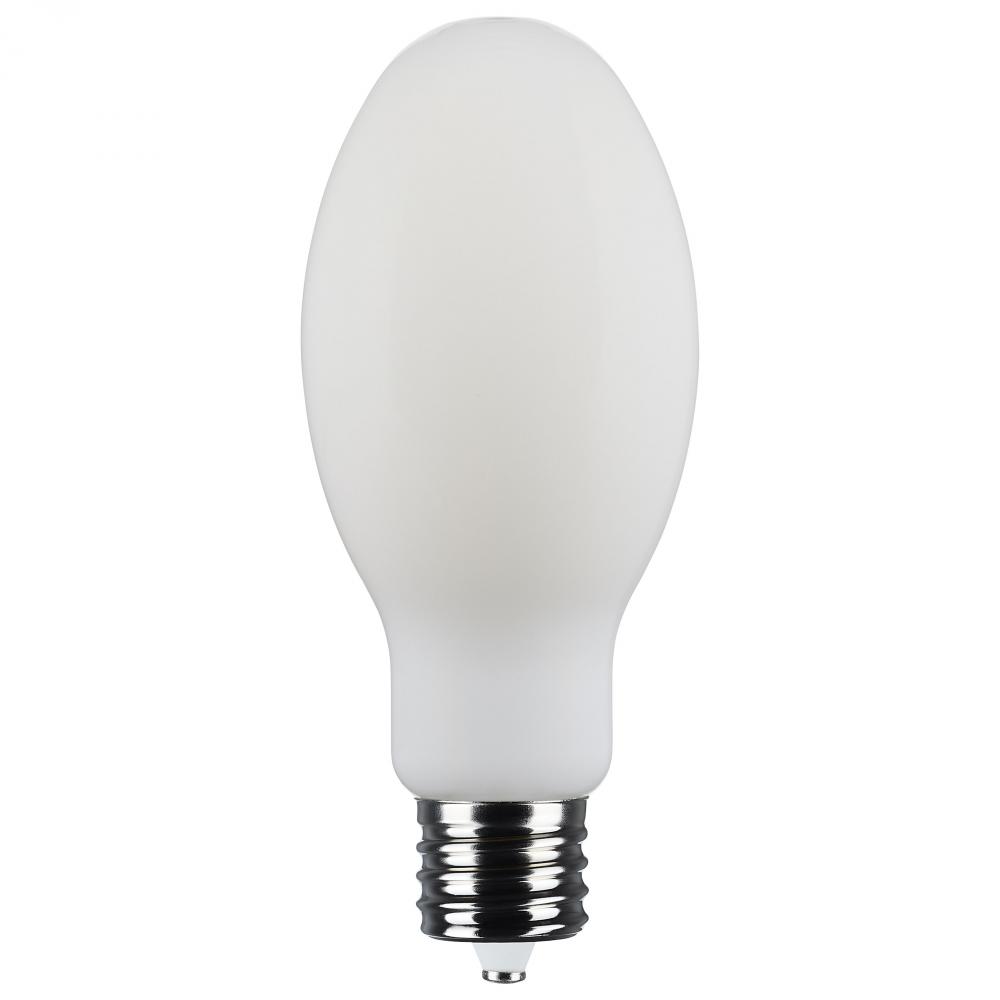

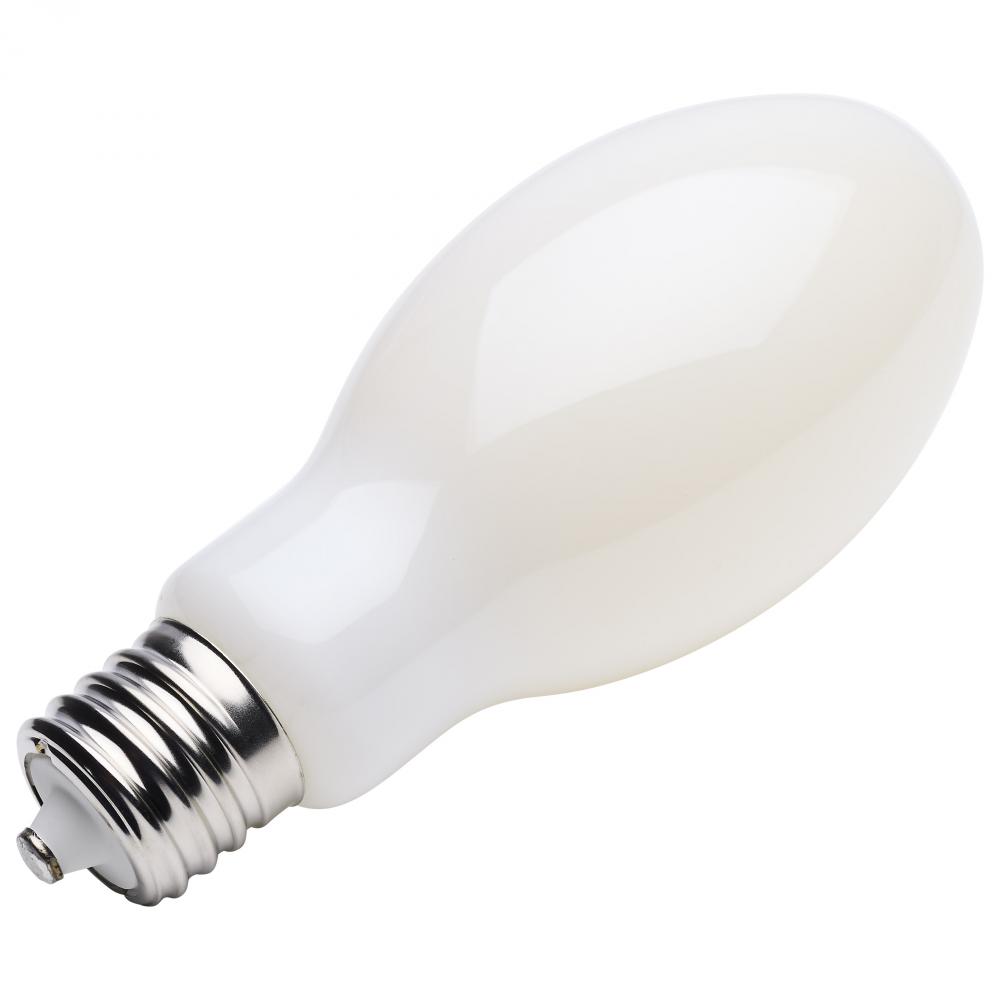

34 Watt LED HID Replacement; ED28; 5000K; Extended Mogul Base; White; 120-277 Range Voltage

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

ED28

Diameter:

3.54

EA Length:

3.94

Harmonized Codes:

8539.52.0091

Length:

8.4

Lumens:

5000L

Shap Carton Width:

3.94

Ship Carton Height:

9.449999999999999

Ship Weight:

0.68

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.45

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

320

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0849

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-D58PNF

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)

Efficacy:

147.06 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

ED28

Feature 10:

5 Year Warranty

Feature 2:

EX39 Base

Feature 3:

White Finish

Feature 4:

34W

Feature 5:

Range Voltage 120V-277V

Feature 6:

Ballast Bypass Type B

Feature 7:

4kV Integrated Surge Protection

Feature 8:

Non-Dimmable

Feature 9:

Wet Location Rated

HID Equivalent:

150W

Housing Color:

None

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Wet

Long Description:

Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO's long-lasting S13188 ED28 HID replacement lamps offer outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. Off

Material:

Glass

Minimum Compartment Size:

Length: 9.25 in. Width: 9.25 in. Height: 17.28 in.

Operating Frequency:

60Hz

Operating Temp:

-30C (-22F) to +65C (+149F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO's long-lasting HID replacement lamps offer outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. With a variety

SDS class:

LED_Lamp

Short Description:

34W/LED/HID/ED28/850/EX39/WH

Style:

Utility

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

34W
