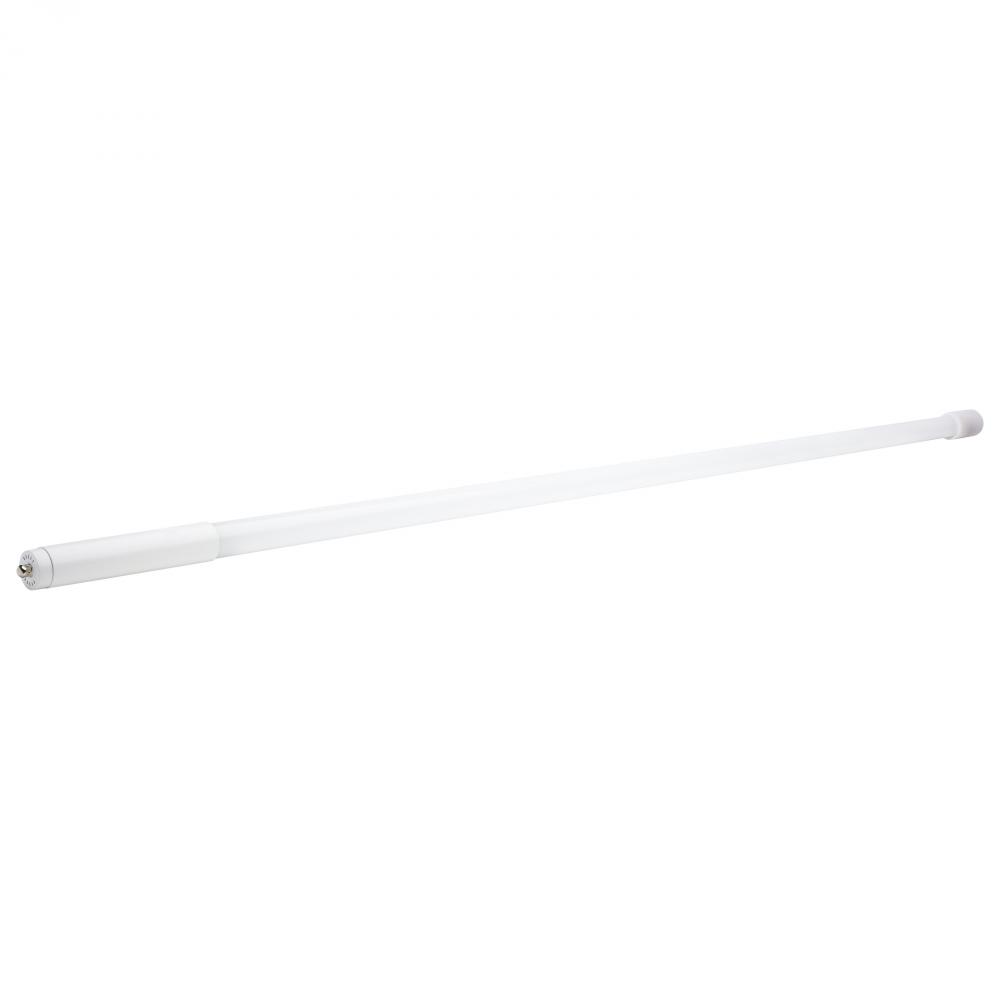

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base

Part Number: X6QWQ / Vendor ID #: 27

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base

$37.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.

Dimensions

Width: 1.00"

Product Overview

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

EA Length:

48.39

Harmonized Codes:

8539.52.0051

Length:

93.75

Lumens:

3500L/4400L/5500L

Shap Carton Width:

6.5

Ship Carton Height:

7.44

Ship Weight:

12.1

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.98

BAA Compliant:

Ballasting Requirements:

Type B Ballast Bypass

Beam Spread:

210

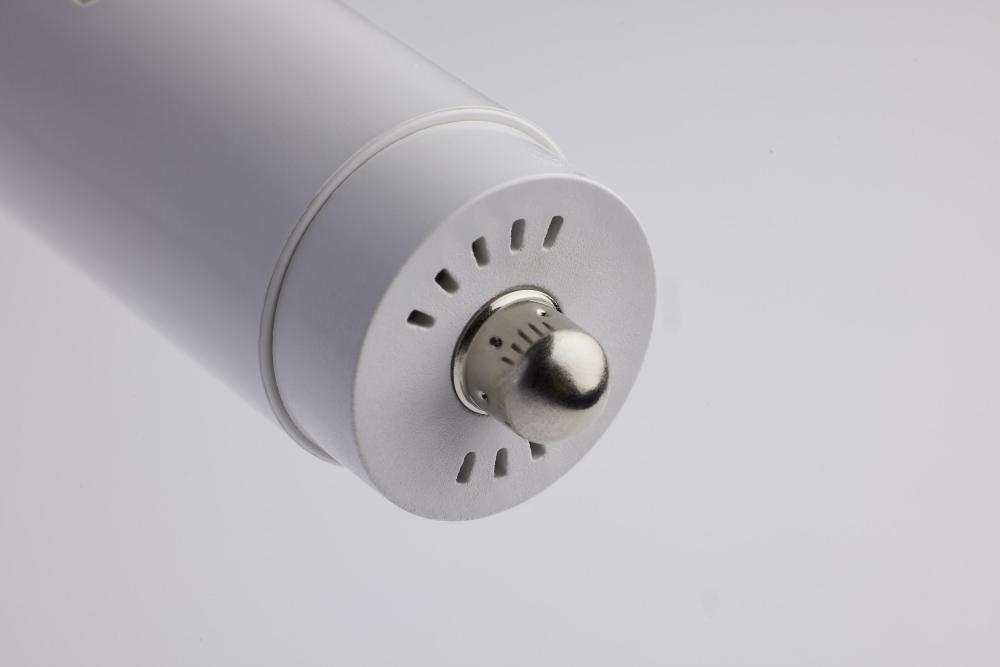

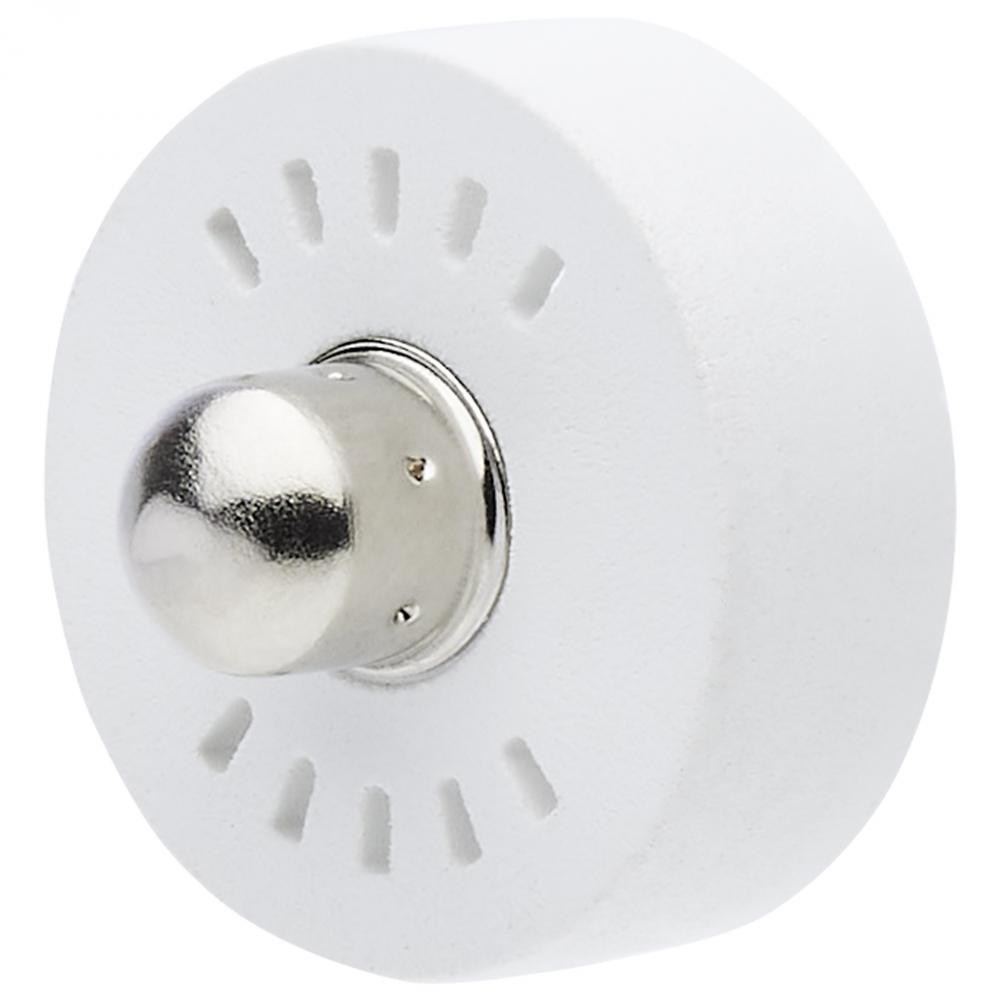

Bulb ANSI Base:

Fa8

Bulb Base:

Single Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

1.3542

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-HPN8SY

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

145.83/137.50/137.50 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Both

FCC Compliant:

Yes

Feature 1:

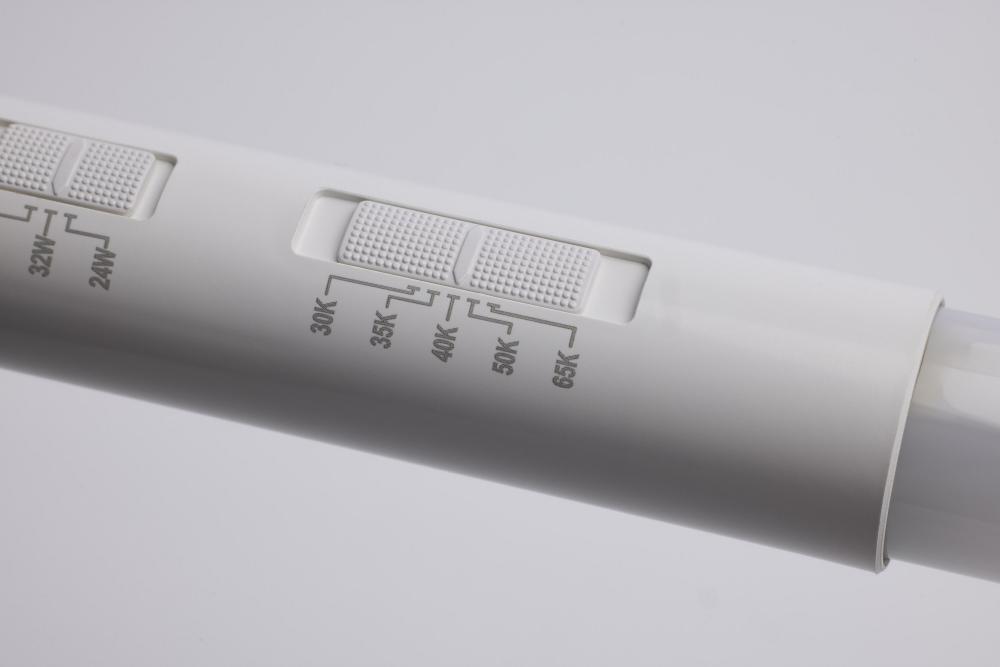

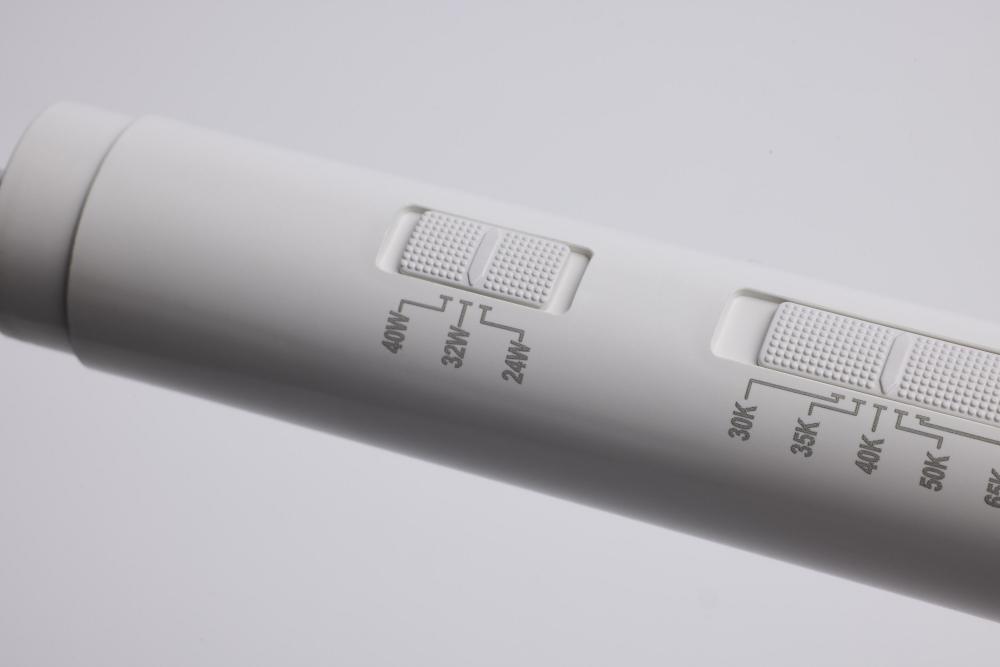

Field Selectable: 3 Wattage and 5 CCT

Feature 10:

Suitable for use in enclosed fixtures

Feature 2:

DLC Listed when used in Fa8 applications

Feature 3:

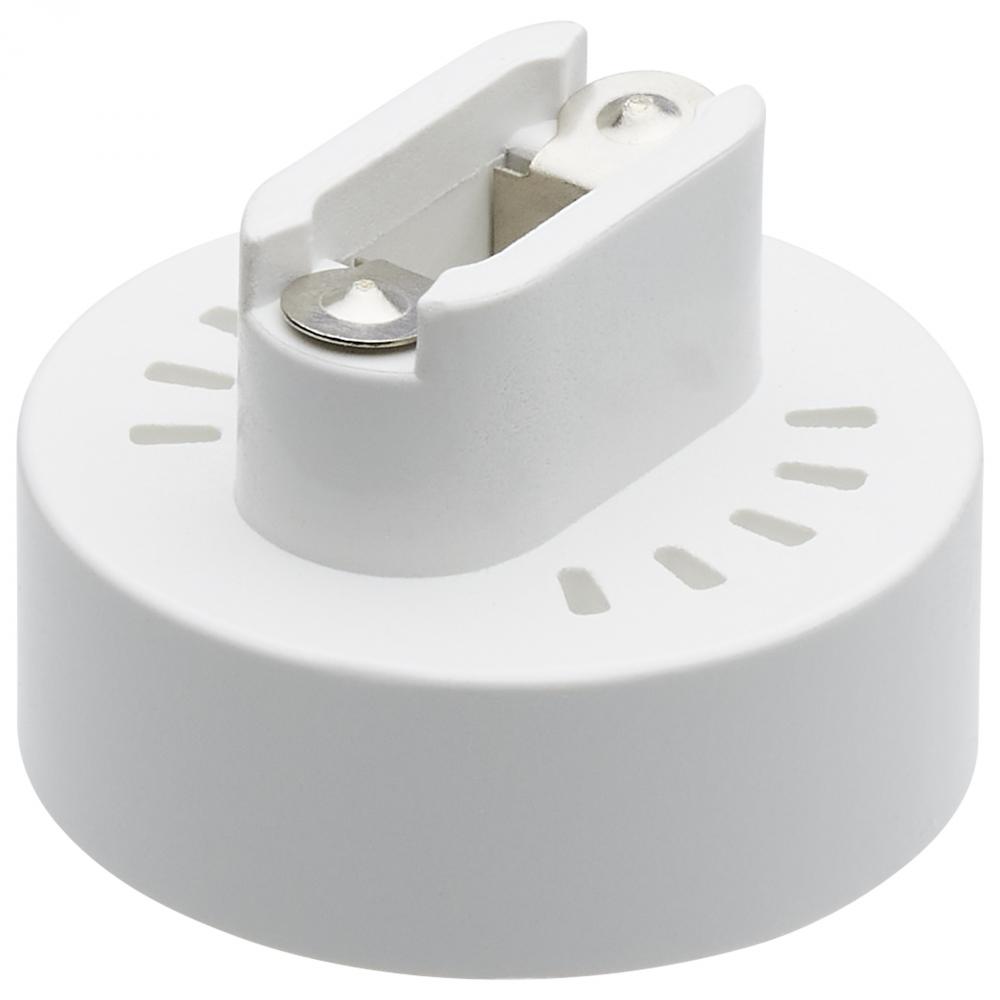

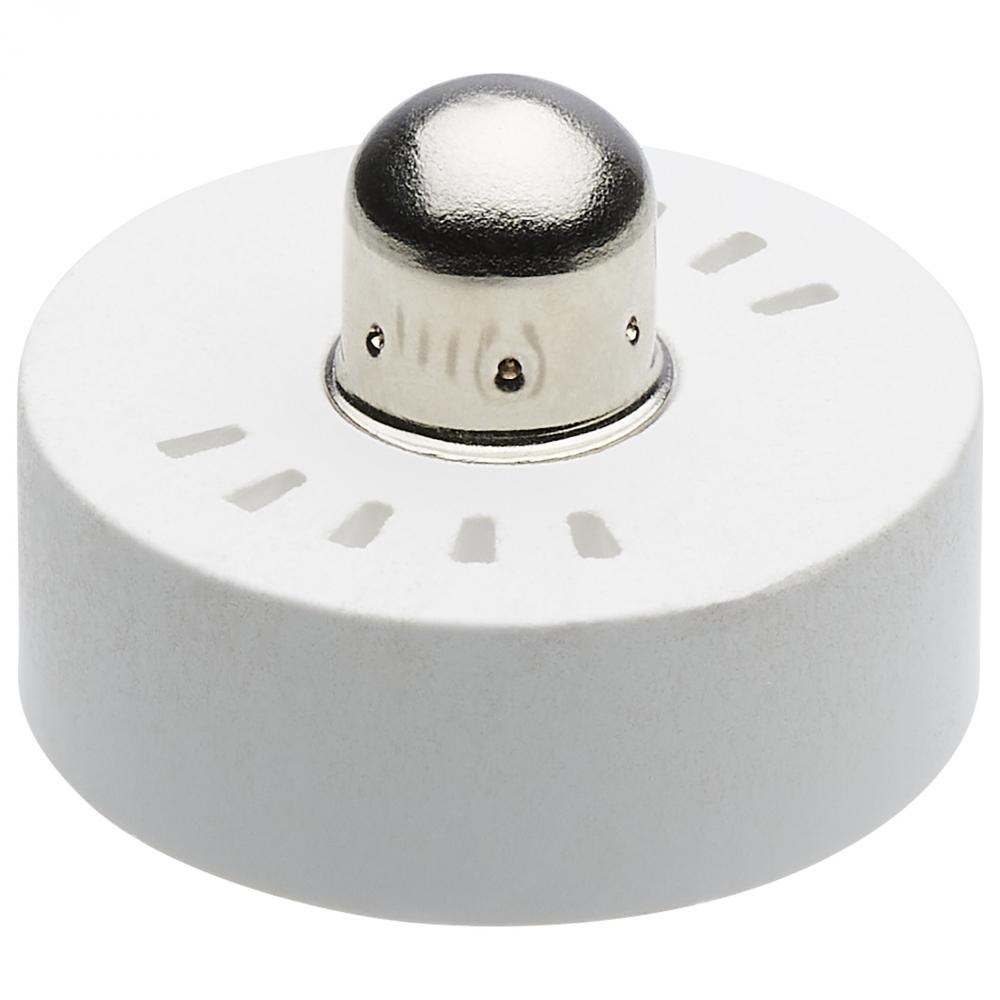

Optional R17d base caps included

Feature 4:

Includes C-clip for extra support where tubes connect

Feature 5:

PET Coated glass tube

Feature 6:

Compatible with optional 10W emergency driver

Feature 7:

Damp Location Rated

Feature 8:

Range Voltage 120V-277V

Feature 9:

210 Degree Beam Angle

Flourescent Equivalent:

40W/55W/70W

Housing Color:

White

Incandescent Equivalent:

100W

Includes:

(20) R17d Base Adapters and (10) Fastening Clips included per case

Installation Notes:

Not for use in vapor tight fixtures. Must use both sections; Provided support clips may differ from current PI Sheet (SN1394). Please refer to the Instruction Sheet provided in the master carton or downloaded from the website, https://www.satco.com/search/

IOT Enabled:

JA8 Compliant:

Lamp End Type:

Double Ended

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

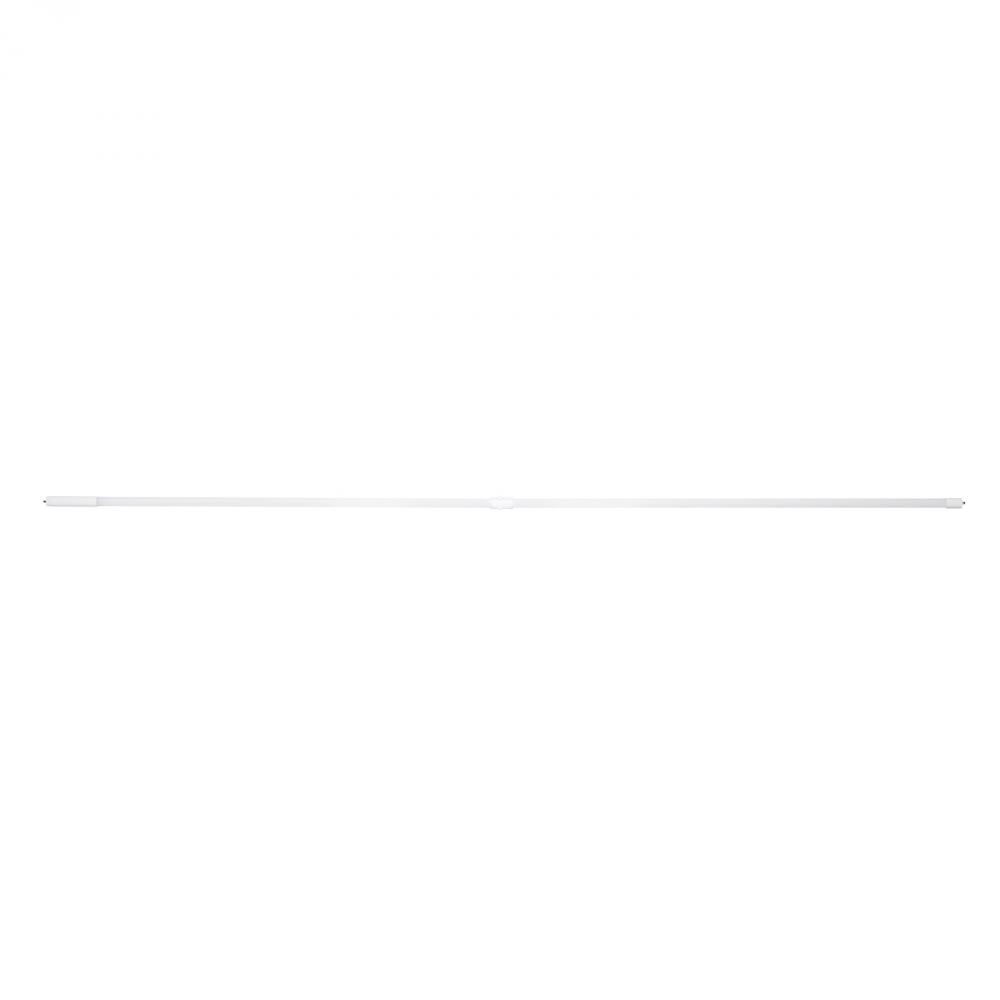

SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11756 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections tha

Material:

Glass

Minimum Compartment Size:

Length: 96.06 in. Width; 10.63 in. Height: 2.76 in.

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Egg Crate

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of this T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that secu

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

40T8/LED/96-CCT/BP/2PC

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Yes

Watts:

24W/32W/40W
