Product Overview

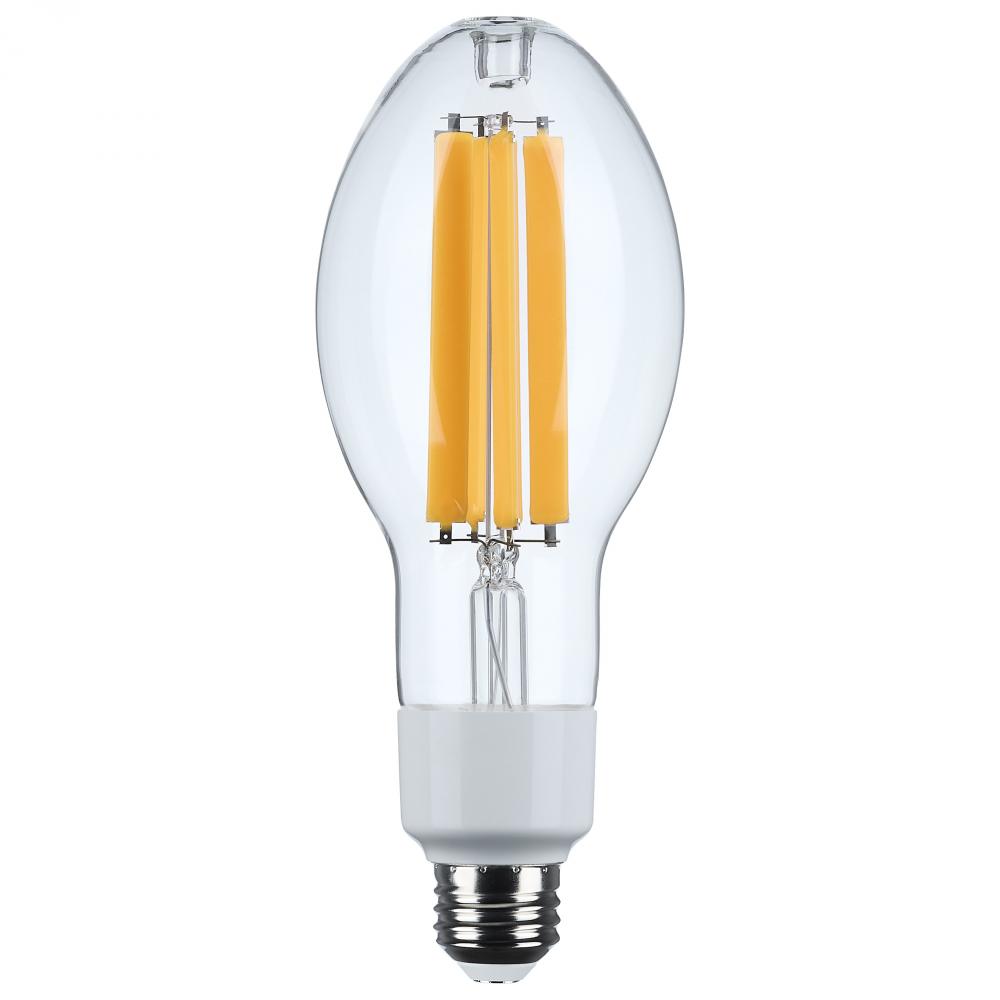

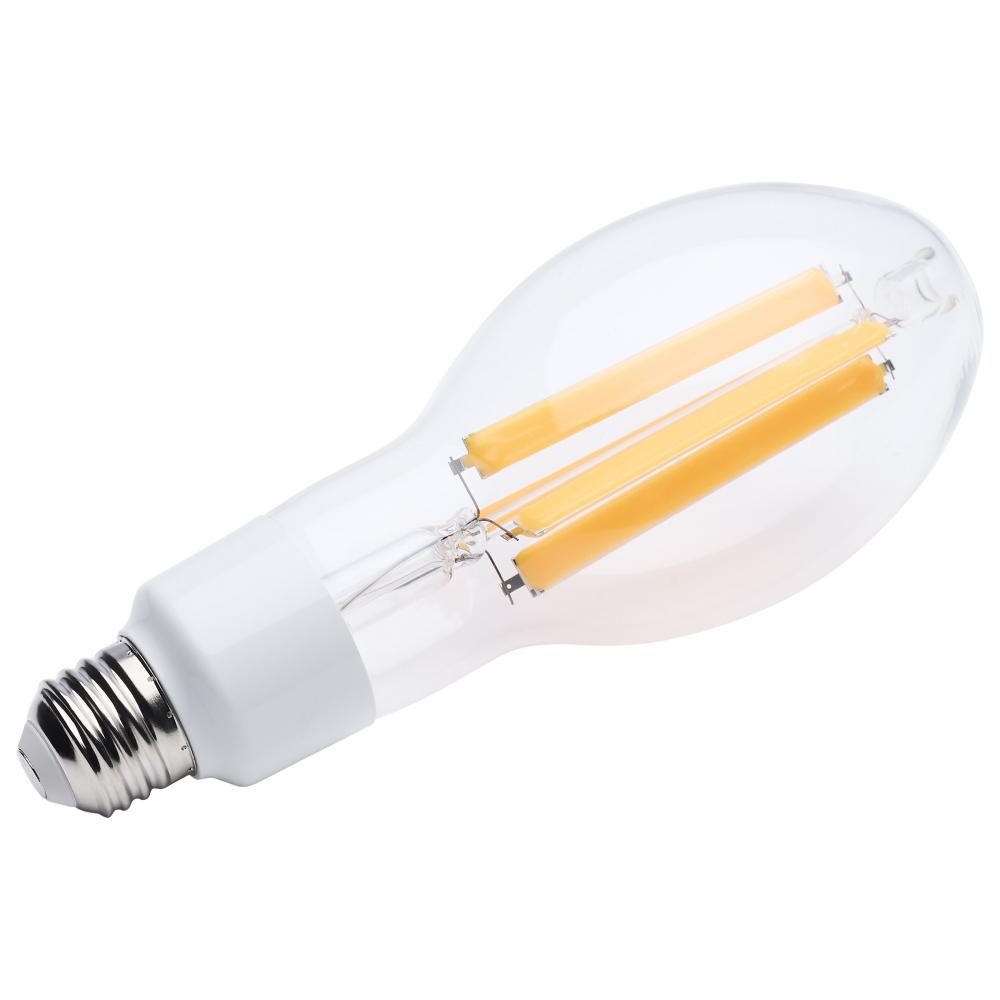

23 Watt LED HID Replacement; ED23.5; 2200K; Medium Base; Clear; 120-277 Range Voltage

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2200K

Bulb Shape:

ED23.5

Diameter:

2.95

EA Length:

3.35

Harmonized Codes:

8539.52.0091

Length:

7.6

Lumens:

3400L

Shap Carton Width:

3.35

Ship Carton Height:

8.859999999999999

Ship Weight:

0.44

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.3

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

320

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0575

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

147.83 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

ED23.5 Shape

Feature 10:

5 Year Warranty

Feature 2:

E26 Base

Feature 3:

Clear Finish

Feature 4:

23W

Feature 5:

Range Voltage 120V-277V

Feature 6:

Ballast Bypass Type B

Feature 7:

4kV Integrated Surge Protection

Feature 8:

Non-Dimmable

Feature 9:

Wet Location Rated

HID Equivalent:

100W

Housing Color:

White

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Wet

Long Description:

Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO's long-lasting S13183 ED23.5 HID replacement lamp offers outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. O

Material:

Glass

Minimum Compartment Size:

Length: 5.98 in. Width: 5.98 in. Height: 10.16 in.

Operating Frequency:

60Hz

Operating Temp:

-30C (-22F) to +65C (+149F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO's long-lasting HID replacement lamps offer outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. With a variety

SDS class:

LED_Lamp

Short Description:

23W/LED/HID/ED23.5/822/E26/CL

Style:

Utility

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

23W
