Product Overview

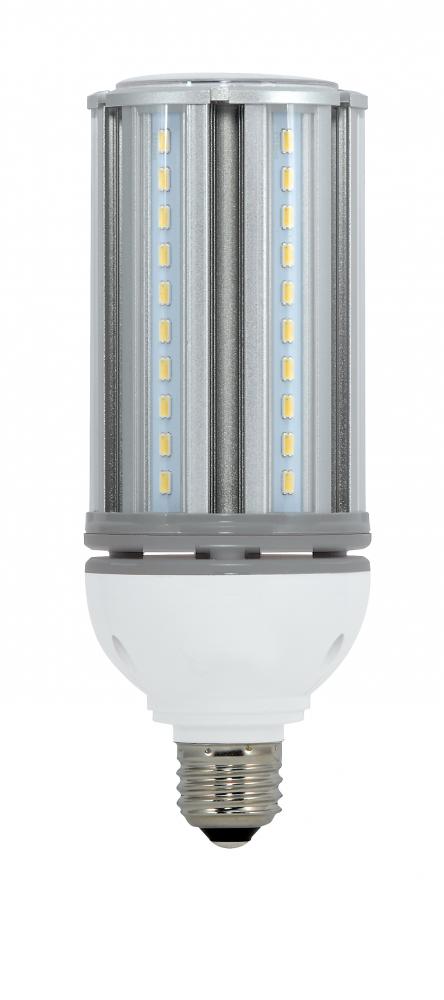

22 Watt - LED HID Replacement; 2700K; Medium base; 100-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2700K

Bulb Shape:

Corncob

Diameter:

2.75

EA Length:

2.76

Harmonized Codes:

8539.50.0091

Length:

7.69

Lumens:

2680L

Shap Carton Width:

2.76

Ship Carton Height:

8.029999999999999

Ship Weight:

0.96

Warranty:

5 Year Limited - Hi-Pro

AC/DC:

AC 90-305V

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0354

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

121.82 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

40W

HID Equivalent:

100W

Housing Color:

White/Grey

Incandescent Equivalent:

150W

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Minimum Compartment Size:

Length: 8.5 in. Width: 6 in. Depth: 6 in.

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +65C (+149F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

22W/LED/HID/2700K/100-277V E26

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

22W
