Product Overview

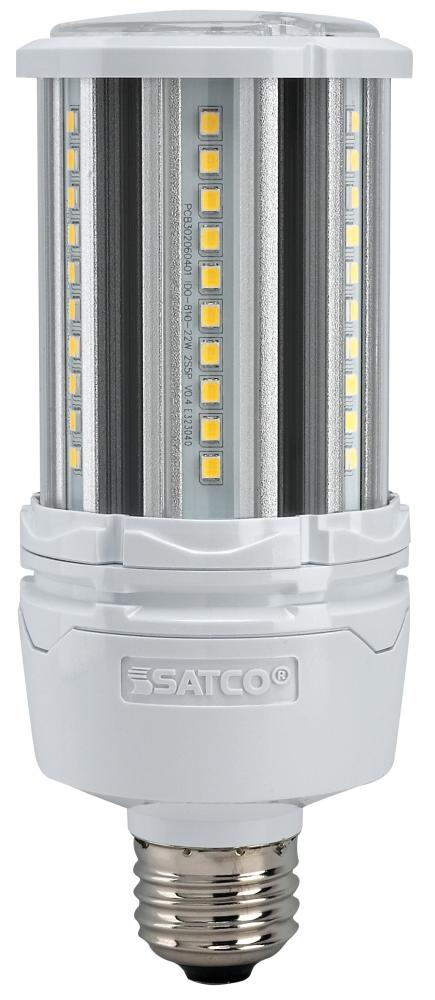

22 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2700K

Bulb Shape:

Corncob

Diameter:

2.38

EA Length:

2.87

Harmonized Codes:

8539.52.0091

Length:

5.94

Lumens:

2860L

Shap Carton Width:

2.87

Ship Carton Height:

7.28

Ship Weight:

0.84

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.68

AC/DC:

AC 90-305V

Additional Info:

Emits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0347

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

130.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

MOL: 5.94 inches, MOD: 2.38 inches

Feature 2:

Superior 80 CRI light quality, 2860 lumens, 2700K warm white light, with a 300 degree beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp rated, for use both indoors and outdoors

Feature 5:

22 watt LED replaces 150 watt incandescent

Feature 6:

Clear lens aluminum corncob shape with plastic white housing

Feature 7:

LED energy efficient fixture

Feature 8:

5 year limited warranty

Flourescent Equivalent:

40W

HID Equivalent:

100W

Housing Color:

White

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP64

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Lens Material:

Plastic (PS)

Location Rating:

Damp

Long Description:

Satco's S39671 22 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and medium ba

Material:

Aluminum / Plastic

Minimum Compartment Size:

Length: 8.5 in. Width: 6 in. Depth: 6 in.

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 22 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and medium base has

SDS class:

LED_Lamp

Shatter Proof Text:

Shatter resistant materials

Short Description:

22W/LED/HID/2700K/100-277V E26

Specification Notes:

DLC 5.1 replacement S23147; Non-DLC replacement S49671

Style:

Contemporary

Surge Protection:

Built-in surge protection - 2.5KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

22W
