Product Overview

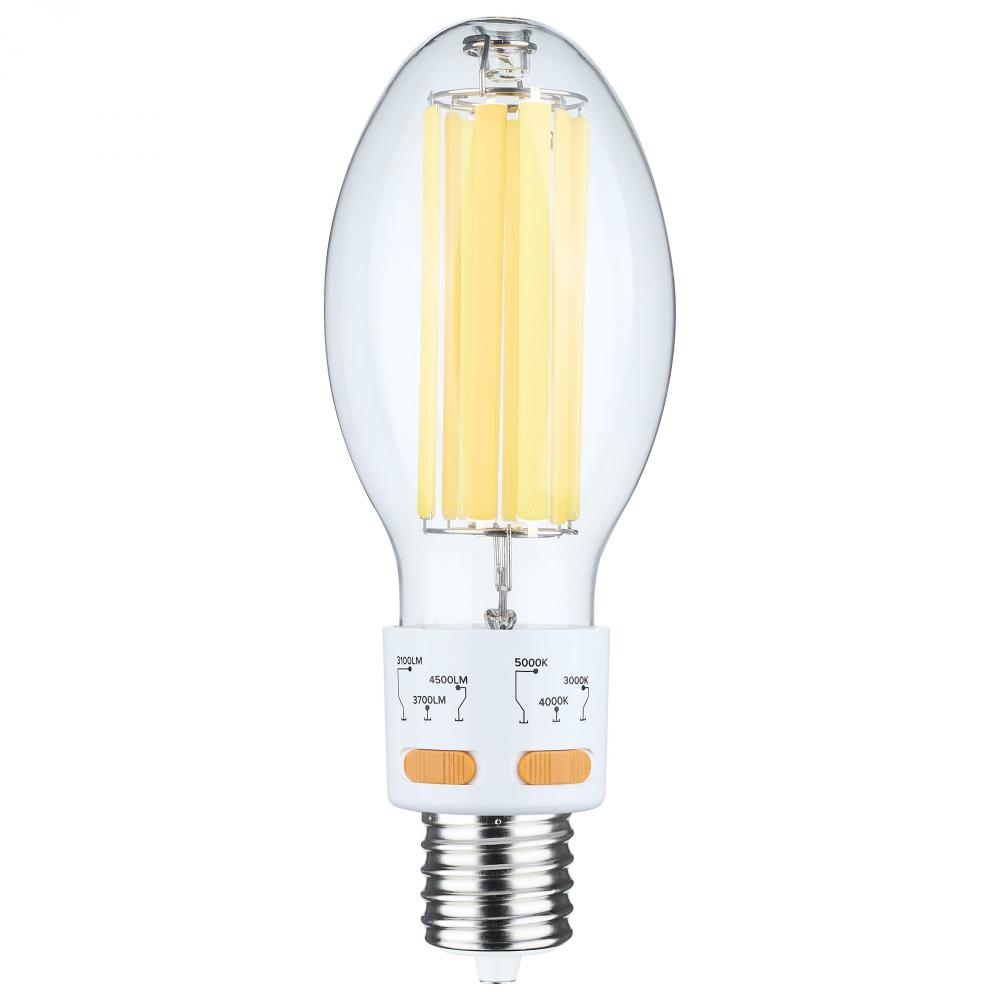

17/20.5/25 Wattage Selectable LED HID Replacement; ED28; 3000K/4000K/5000K CCT Selectable; Mogul Extended Base; Clear; 120-277 Range Voltage

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

ED28

Diameter:

3.58

EA Length:

3.54

Harmonized Codes:

8539.52.0091

Length:

9.92

Lumens:

3100L/3700L/4500L

Shap Carton Width:

3.54

Ship Carton Height:

10.63

Ship Weight:

0.55

Warranty:

5 Year Limited - Hi-Pro

Weight:

0.55

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

360

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Universal

Candle Power:

250

Carton Cubic Feet:

0.0771

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Natural Light

Country Of Origin:

China

CRI:

80+

Dimmable Function:

Only dimmable through wattage selection switch on lamp

Dimming Type:

Step Dimming

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-YZF3TT

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)

Efficacy:

182.35/180.49/180.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

Field Selectable - Wattage and CCT Selectable

Feature 2:

Type B - Ballast Bypass

Feature 3:

Range Voltage 120V-277V

Feature 4:

360-Degree Illumination

Feature 5:

Wet location rated

Feature 6:

Universal Operating Position

Feature 7:

Glass Lamp

Feature 8:

EX39 Mogul base

Feature 9:

Rated for Use in Enclosed Fixtures

HID Equivalent:

50W/70W/100W

Housing Color:

White

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Wet

Long Description:

SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This field selectable ED28 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lastin

Material:

Glass

Minimum Compartment Size:

Length: 14.02 in. Width: 8.03 in. Height: 8.03 in.

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Color Box

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

2

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps

SDS class:

LED_Lamp

Short Description:

25W/LED/HID/ED28/CCT/EX39/CL

Style:

Utility

Surge Protection:

Built-in surge protection - 2KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Watts:

17W/20.5W/25W
